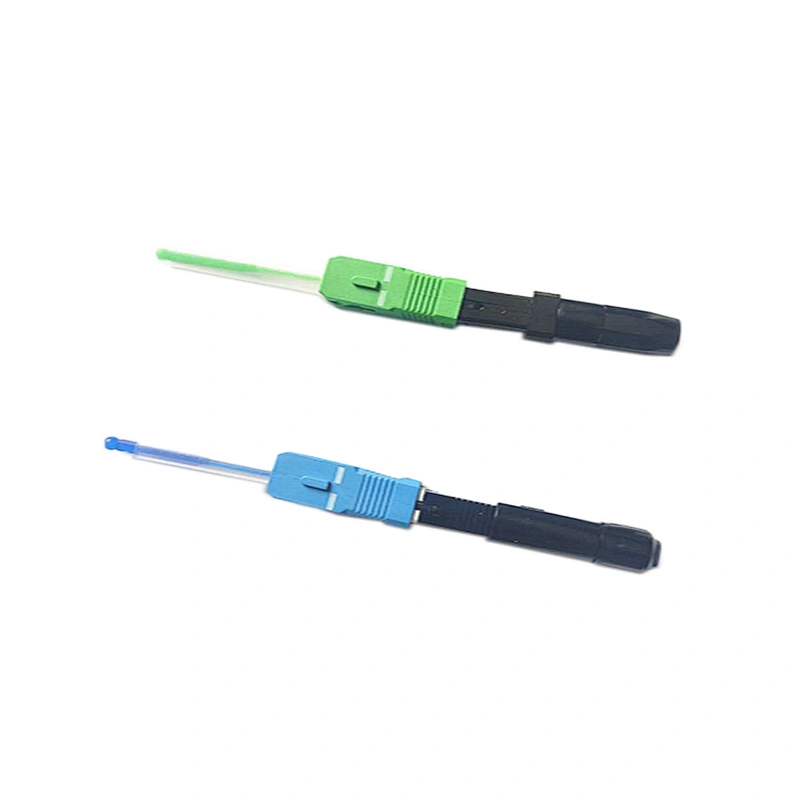

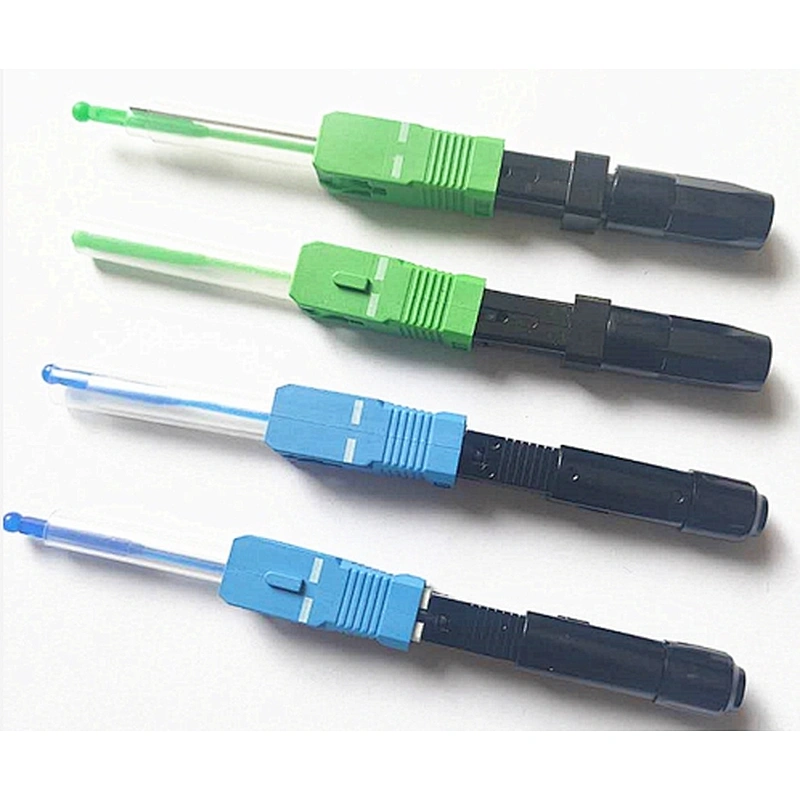

Fiber Fusion Splice On Connector
Fiber Fusion Splice On Connector
Fiber Fusion Splice On Connector
Fiber Fusion Splice On Connector
Fiber Fusion Splice On Connector

Fiber Fusion Splice On Connector

Model NO.
MAX0818
Country of Origin
China
Quantity:
FEATURES
• Low insertion loss and back reflection loss
• Ferrule end surface predomed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Boots in a variety of colors
• Free-floating ceramic ferrule

APPLICATIONS
• CATV
• Active device termination
• Telecommunication networks
• Metro
• Local Area Networks (LANs)
• Data processing networks
• Test equipment
• Premise installation
• Wide Area Networks(WANs)

ItemsSC Pre-polished typeLength83mm
FerrulesSM  UPCSM APC
Inner diameter of ferrules125.5 um127.0 um
Insertion loss@1310nm,≤0.2dB@850nm,≤0.2dB
Return loss≥50.0dB≥60.0dB
Working temperature -40~+85Mating times         500 times
Storage temperature -40~+85Fiber cables     Ø 0.9/2/3mm
