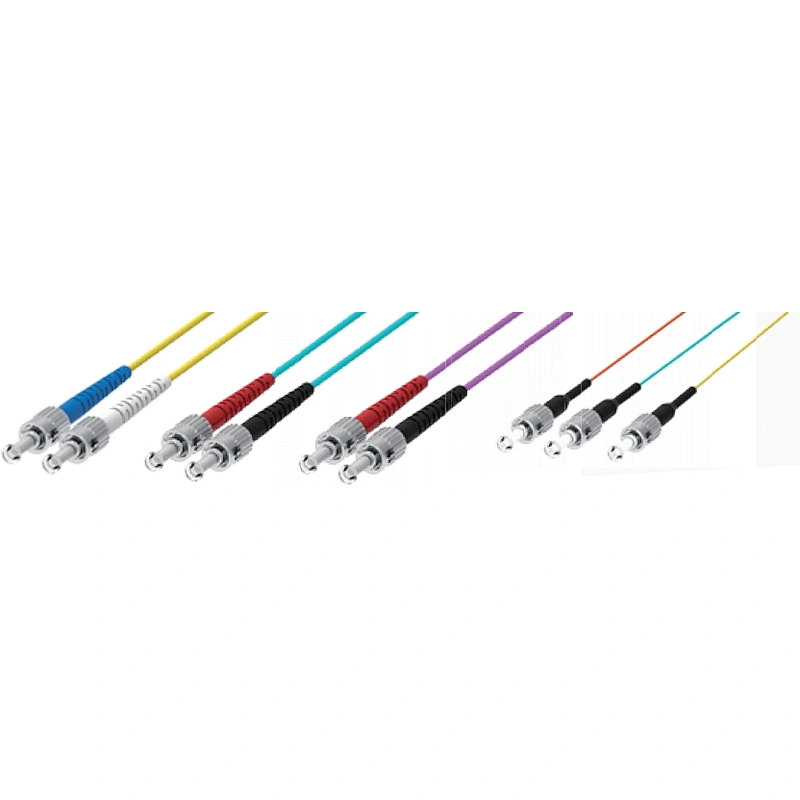

Fiber Optic Patch Cord
Fiber Optic Patch Cord

Fiber Optic Patch Cord

Model NO.
MAX0406
Country of Origin
China
Quantity:
   Type                              Singlemode(UPC)                 Singlemode(APC)                   Multi-mode(UPC)
Insertion Loss (dB)                     ≤0.20                                       ≤0.20                                         ≤0.20
Return Loss (dB)                        ≥55                                          ≥60                                            ≥35
Repeatability Loss(dB)                                                               ≤0.10
Repeat Piug-pull Times                                                              ≥1000
Tensil Strength(N)                                                                      ≥100
Operating Temperature(℃)                                                  -40℃~+75℃
Storage Temperature(℃)                                                     -40℃~+85℃
Part No.     Connector   Pigtail/Jumper   Fiber Count   Fiber Type     Cable Diameter   Jack Type   Length
MAX0406    ST/UPC          Pigtail                 Simplex         SM-G652         09:0.9mm              LSZH        1meter
                  ST/APC          Jumper               Duplex           SM-G655         20:2.0mm              PVC         2meter
                                                                                      SM-G657A1     30:3.0mm                              3meter
                                                                                      SM-G657A2     24:2.4mm                              5meter
                                                                                      OM1                                                           10meter
                                                                                      OM2                                                           15meter
                                                                                      OM3                                                           20meter
                                                                                                                                                        30meter
                                                                                                                                                      100meter
