LC-Uniboot
LC-Uniboot

LC-Uniboot

Model NO.
MAX0401
Country of Origin
China
Quantity:

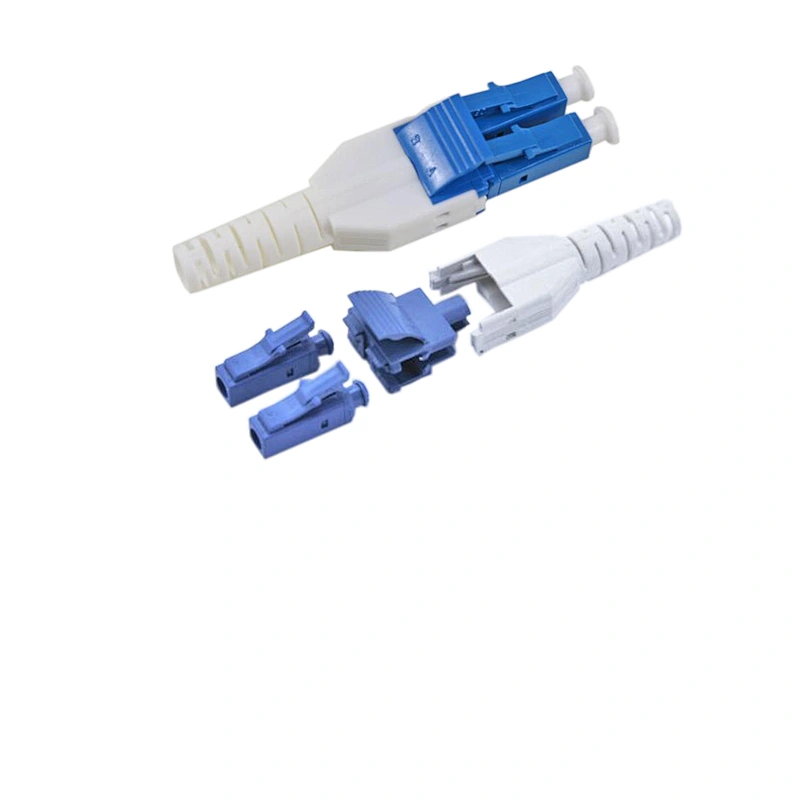

The duplex LC connector for 2.0mm round cable, which allows the polarity to be switched from A-B to A-A without any tools.

FEATURES
• Uniboot with a Single Housing
• Unique Push-Pull Design and Function
• Easy to Assemble and Use
• Low Insertion Loss and Back Reflection
• High Repeatability and Reliability

APPLICATIONS
• Data Centers
• Local Area Networks
• High-Density Applications
• Interconnects
• Cross-connects

ModeSingle modeMultimode
PolishUPCAPCPC
Insertion Loss ≤0.30dB    ≤0.20dB≤0.20dB
Return Loss ≥50dB≥60dB≥30dB
Test Wavelength 1310/1550nm850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326
