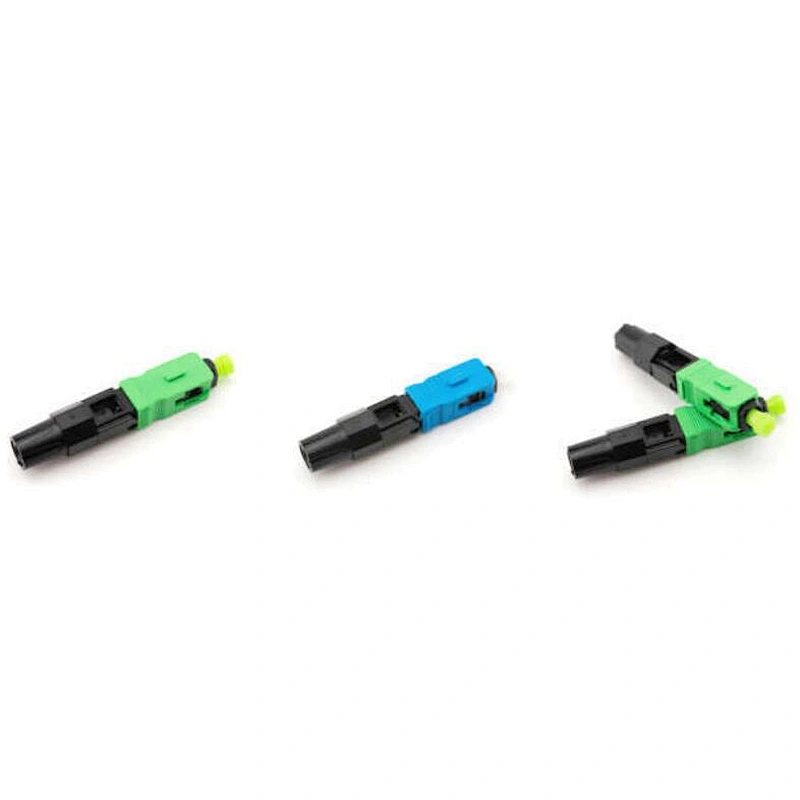

Mechanical Fiber Optic Connector
Mechanical Fiber Optic Connector

Mechanical Fiber Optic Connector

Model NO.
MAX0809
Country of Origin
China
Quantity:
FEATURESAPPLICATIONS
• Unique bell-shaped boot maintains the mini fiber bend radius• Data Centers
• Precision mechanical alignment insures low insertion loss• Local Area Networks
• Fiber aligned in v-groove through the ceramic ferrule• High-Density Applications
• Low-volatile reliable matching liquid preserved by side cover• Interconnects
• Pre-installed, on-site assembly without end face grinding and consideration• Cross-connects

ItemsSC Pre-polished typeLength52mm
FerrulesSM  UPCSM  APCMM  UPC
Inner diameter of ferrules125.5 um127.0 um
Insertion loss@1310nm,≤0.35dB@850nm,≤0.35dB
Return loss≥50.0dB≥60.0dB≥30.0dB
Working temperature -40~+85Mating times         500 times
Storage temperature -40~+85Fiber cables       Ø 0.9/2/3mm
