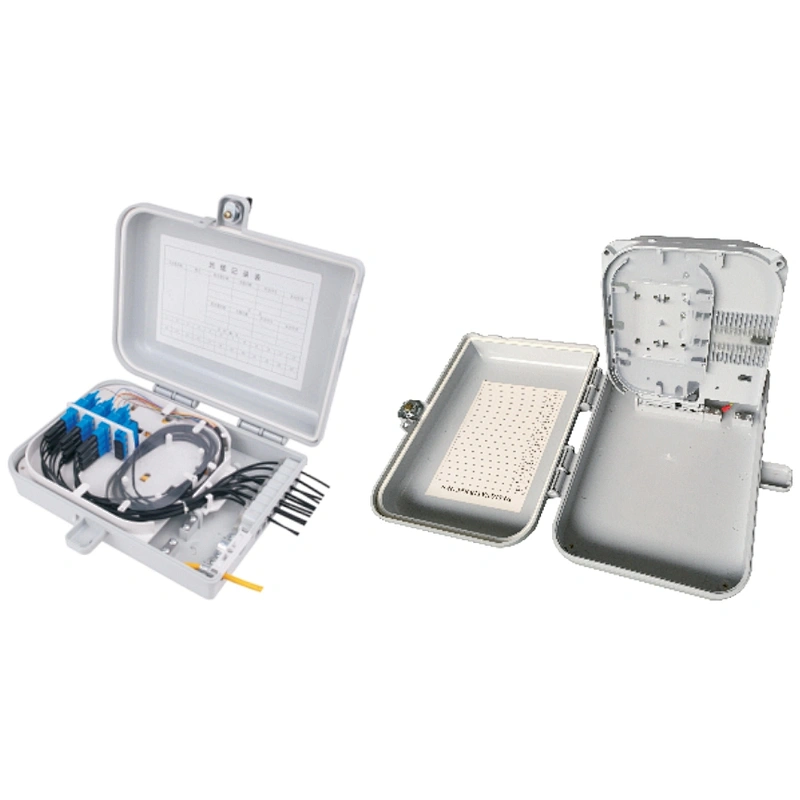

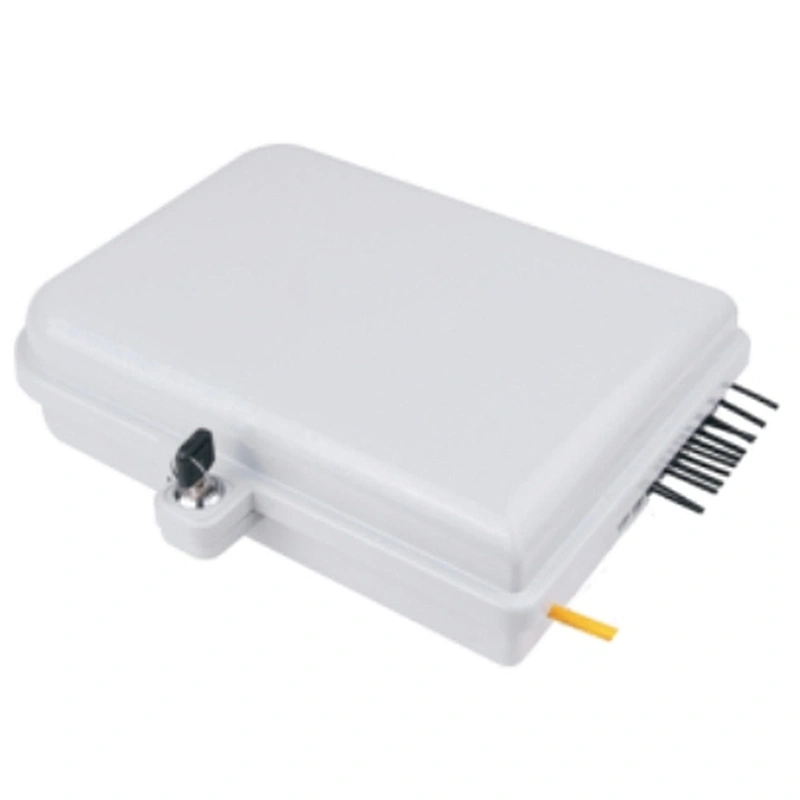

Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores
Outdoor fiber optic distribution box 12 cores

Outdoor fiber optic distribution box 12 cores

Model NO.
MAX0206-16
Country of Origin
China
Quantity:
NameOutdoor fiber optic distribution box            12 cores
Part No.MAX0206-16

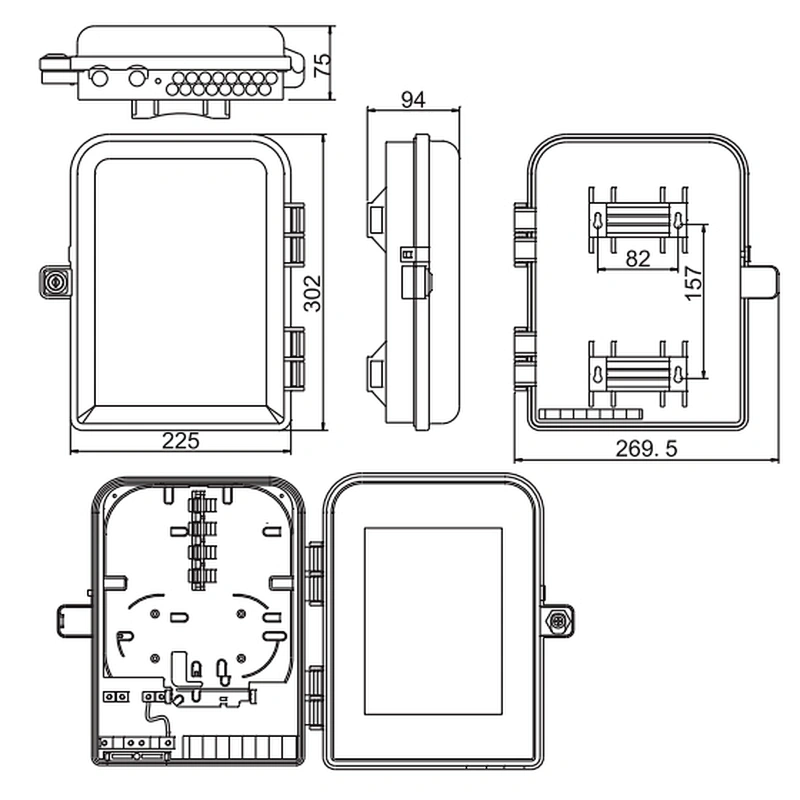

Outline Dimension (LxWxH)302x225x75mm
Port Type16ports SC Simplex adapter
16ports LC Duplex adapter,1:16 Mini PLC Splitter
InstallationWall mount (outdoor)
IP RateIP65
Cable EntriesNormal
ColorWhite
MaterialABS

Features
•Easy to set up the drop cable
•Two flap to choose,on is set up the adapter,anoter one is set up  module splitter
•With lock , good safe
•Install on the wall or pole
•High quality plastics

Part No.Description
MAX0206-16FTTH wall box without adapter and pigtail
MAX0206-16-16SCFTTH wall box with 16pcs SC Simplex adapter,without pigtail
MAX0206-16-16SC-PFTTH wall box with 16pcs SC Simplex adapter,with16pcs pigtail
MAX0206-16-16LCFTTH wall box with 16pcs LC Duplex adapter,without pigtail
MAX0206-16-16LC-PFTTH wall box with 16pcs LC Duplex adapter,with 32pcs pigtail
MAX0206-16-16SFTTH wall box with 16pcs SC Simplex adapter,with 1:16 Mini PLC Splitter
